BioTec ScreenMatic Filter Set 90000 OC

Now: £2,569.99 inc. VAT

RRP £3,569.99

Now: £2,141.66 exc. VAT

Buy now

Most Popular

Need advice on this product?

Speak to one of our experts today 02392 373735

Need advice on this product?

Speak to one of our experts today 02392 373735

OASE BioTec ScreenMatic² Filter Sets

The OASE BioTec ScreenMatic² Sets are complete pond filtration systems consisting of a BioTec ScreenMatic² pond filter, an AquaMax Eco Premium Pump and a Bitron C ultraviolet clarifier. Each set has been comprised specifically to suit ponds of different water volumes and fish stock (species and stocking density). Based on this information, these automated-clean, energy efficient filtration systems will achieve an optimum rate of water turnover through the filter, tacking algae, solid and soluble waste, resulting in clean, clear and healthy pond water.

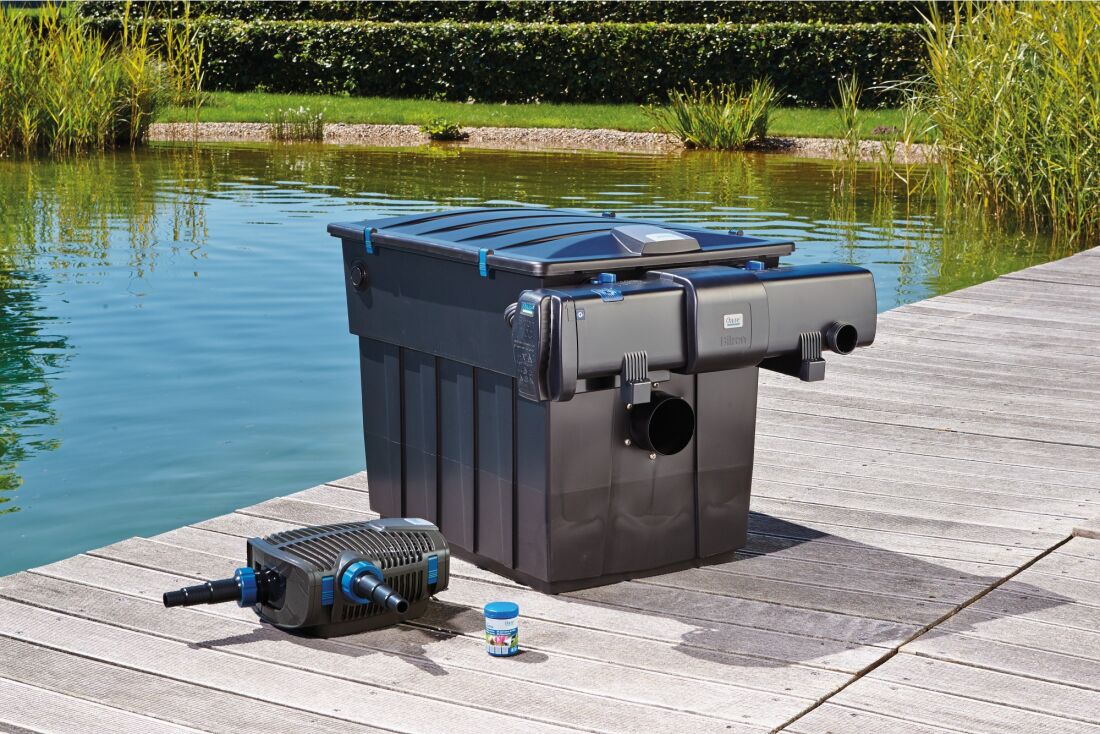

The OASE BioTec ScreenMatic Set 90000 features the BioTec ScreenMatic 90000² pond filter, The AquaMax Eco Premium 21000 OC filter pump and the Bitron C 110 UVC. The Biotec ScreenMatic filter is automated cleaning system incorporating a drive belt and 300 micron mesh screen. This facilitates cleaning by transferring solid waste product to a collection tray for easy removal. Solid waste is intercepted by the screen upon entry and a digital waste detection sensor measures waste build up, initiating clean cycles when the screen is sufficiently filled. Biological filtration of soluble waste is performed in bank of 16 filter sponges beneath the screen mechanism and natural zeolite binding media at the front of the filter.

The AquaMax Eco Premium 21000 OC filtration pump is perfectly suited to delivering an optimum rate of flow through the filtration system, passing of organic waste product and using very little energy to deliver a high performance. This pump features special features such as dry run protection and seasonal flow control for power savings in winter and can be controlled remotely using one of the OASE OC/EGC control devices (not supplied). The Bitron 110C ultraviolet clarifier mount directly onto the filter unit via twin outlets. This eliminates green algae and pathogens for clear and healthy water.

Additional Information

Technical Info
Performance Data

Technical Info

BioTec ScreenMatic 90000 Dimensions

OASE BioTec ScreenMatic² 90000 Filter - Technical Details

	BioTec ScreenMatic² 40000	BioTec ScreenMatic² 60000	BioTec ScreenMatic² 90000	BioTec ScreenMatic² 145000
Dimensions L x W x H (mm)	788 x 590 x 445	788 x 590 x 545	788 x 590 x 645	1334 x 891 x 815
Rated voltage (primary, secondary)	-
Power consumption (W)	5
Cable length 12 V device (m)	2.10 (Power unit) + 5.00
Net weight (Kg)	20.00	25.00	30.00	95.00
Guarantee + request guarantee (Years)	2 + 1
Number of filter foams (Total)	8	8	16	18
Number of blue filter foams	2	2	4	4
Number of red filter foams	3	3	6	7
Number of purple filter foams	3	3	6	7
Special filter granulate (Kg)	2.50	3.50	5.00	14.50
Temperature display	No
Coarse debris extraction (µm)	300
Connection inlet (inches)	1”, 1 ¼”, 1 ½”	1”, 1 ¼”, 1 ½”	1”, 1 ¼”, 1 ½”, 2”	1”, 1 ¼”, 1 ½”, 2”
Connection outlet	DN 75	DN 75	DN 110	DN 110
Connection sludge discharge	DN 50	DN 50	DN 50	DN 110
Min. flow rate (L/hr)	4000	6000	8000	6000
Max. flow rate (L/hr)	9000	11000	12500	17500
Suitable for ponds up to max. (m³)	40.0	60.0	90.0	145.0
Suitable for ponds with fish stock (m³)	20.0	30.0	45.0	72.0
Suitable for ponds with koi (m³)	10.0	15.0	22.5	36.0
Connection to	Bitron C 36 – 110 W, Bitron Eco 120 – 240 W

AquaMax Eco Premium Pump - Technical Details

AquaMax Eco Premium	21000
Dimensions L x W x H (mm)	340x280x165
Voltage (V/Hz)	220-240/50
Power Use Max (W)	180
Power Range (W)	20 - 180
Maximum Flow Rate (l/h)	21,000
Maximum Flow Rate (l/m)	350
Maximum Lift Head (m)	6.0
Solids Handling (mm)	11
Cable Length (m)	10
Inlet Size (BSP Male)	2”
Outlet Size (BSP Male)	2”
Hose Connector Size (mm)	25,32,38,50
Guarantee (Years)	5
OASE GB Part No.	75934

Bitron C Ultraviolet Clarifier - Technical Details

	Bitron C 24 W	Bitron C 36 W		Bitron C 55 W		Bitron C 72 W			Bitron C 110 W
Dimensions (L x W x H) mm	440 x 180 x 198	600 x 180 x 198		600 x 180 x 198		730 x 215 x 200			730 x 215 x 200
Rated voltage	220 – 240 V / 50/60 Hz
Power consumption (watts)	24	36		55		72			110
Power cable length (metres)	5.00
Net weight (Kg)	3.50	3.97		4.03		6.44			6.50
Guarantee (Years)	2
UVC power (watts)	24	36		55		72			110
Temperature display	No
Bypass	Manually
UVC operating hours meter	No
Number of inlets	1
Inlet connection	1”, 1 ¼”, 1 ½”	¾”, 1”, 1 ¼”, 1 ½”, 2”	¾”, 1”, 1 ¼”, 1 ½”, 2”		¾”, 1”, 1 ¼”, 1 ½”, 2”		¾”, 1”, 1 ¼”, 1 ½”, 2”
Number of outlets	2
Outlet connection	1”, 1 ¼”, 1 ½”
Min. flow rate (L/hr)	4000	8000		8000		12000		12000
Max. flow rate (L/hr)	15000	30000		30000		40000		40000
Max. operating pressure (Bar)	0.50	0.50		0.50		1.00		1.00
Suitable for ponds up to max. (m³)	25.0	40.0		60.0		75.0			110.0
Suitable for ponds with fish stock (m³)	12.5	20.0		30.0		37.5			55.0
Suitable for ponds with koi (m³)	6.5	10.0		15.0		19.0			27.5
Connection to	BioSmart 18000/36000	BioSmart 18000/36000, BioTec ScreenMatic² 40000-60000		BioSmart 18000/36000, BioTec ScreenMatic² 40000-60000		ProfiClear, BioTec 30, BioTec ScreenMatic²		ProfiClear, BioTec 30, BioTec ScreenMatic
Other	Visual Function check

BioTec ScreenMatic² Filter Set Performance Capability.

Recommended pond volumes with filter outlet located at an estimated 1 metre above pond water level and with approximately 5 metres of 1 1/2" diameter hose between pump and outlet. Pond volumes below are achieved when the filter is fitted with the recommended Bitron ultraviolet clarifier (UVC).

BioTec ScreenMatic Filter Set	Filter Model	Bitron UV	Aquamax ECO Pump	Recommended Pond volume in litres
BioTec ScreenMatic Filter Set	Filter Model	Bitron UV	Aquamax ECO Pump	No Fish	Average Fish Stock 1kg/1000 litres	Koi/High Fish Stock 2kg/1000 litre
Set 40000 OC	BioTec 40000	36 watts	Aquamax Eco Premium 13000	40000	20000	10000
Set 60000 OC	BioTec 60000	55 watts	Aquamax Eco Premium 17000	60000	30000	15000
Set 90000 OC	BioTec 90000	110 watts	Aquamax Eco Premium 21000	90000	45000	22500
Set 120000	BioTec 145000	120 watts ECO	Aquamax Eco Premium 21000	120000	60000	30000
Set 145000	BioTec 145000	240 watts ECO	Aquamax Eco Expert 26000	145000	72000	36000
Twin Set 120000	BioTec 60000 x 2	55 watts x 2	Aquamax Eco Twin 30000	120000	60000	30000
Twin Set 180000	BioTec 90000 x 2	110 watts x 2	Aquamax Eco Expert 44000	180000	90000	45000

Pond Turnover Rates: The pond stocking levels will determine the required turnover rate which in turn determines the required pump flow rate. Typically, an ornamental pond without any fish will require the pond volume to be circulated at least once every 6-8 hours; an average stocked pond (with up to 1 kg of fish for every 1000 litres) will require circulating once every 4 hours; a heavily stocked pond including Koi (with up to 2 kg of fish for every 1000 litres) will require circulating once every 2 hours. BioTec ScreenMatic Set pump selections allow for increased flow lost through the filter foams as they become polluted with pond waste (see the importance of regular maintenance, below).

Pump Flow Rate: The pump flow rate, typically in litres per hour (lph) or litres per minute (lpm) is determined by the vertical lift, in metres, from the surface of the pond to the outlet pipe AND by the friction losses through the system. The narrower the pipe bore the higher the friction losses, so always use the maximum hose diameter. There will also be a friction loss caused across the filter media (foams etc), which will increase as they become polluted with pond waste.

Effect of raising the filter: Raising the filter height, typically for a watercourse or waterfall, will reduce the flow rate from the pump thereby increasing the amount of time it takes to circulate the dirty pond water through the filter. This effectively reduces the maximum pond volume that the filter system can cope with and may mean you will require a larger pump. Please contact us and we would be happy to advise you.

The importance of regular maintenance (cleaning): High flow rate = effective filtering. As the filter media (e.g. screen and foams) remove dirt and waste from the pond, so the friction loss across the foams will increase, thereby reducing the flow rate and the effective performance of the filter. It is therefore essential, especially for those systems with a raised outlet, to keep the filter foams clean. Fortunately, this is extremely easy with OASE BioTec ScreenMatic pond filters.
