The PondoMax Eco Controllable pump range features:
Please note the hard-wired in-line control module fitted to the PondoMax Eco 11500 C and 17500 C pump cable is not removable and therefore will not be able to be passed through a conduit fitting (as the controller cannot be removed or the cable cut and rejoined. Doing so will invalidate the manufacturer's warranty).
PondoMax Eco | 8500 C | 11500 C | 17500 C |
Power consumption (watts) | 70 | 100 | 175 |
Voltage/Hz | 220-240/50 | 220-240/50 | 220-240/50 |
Cable length in metres | 10 (8+2) | 10 (8+2) | 10 (8+2) |
Turnover rate max. (l/h) | 8300 | 10300 | 17300 |
Max. head height | 4.5 | 4.6 | 4.7 |
Multistage hosetail outlet | 1",1 1/4",1 1/2" | 1",1 1/4",1 1/2" | 1",1 1/4",1 1/2" |
Maximum solids handling | 8mm | 8mm | 8mm |
Dimensions (mm) | 240 x 290 x 140 | ||
Guarantee period | 3 years | 3 years | 3 years |

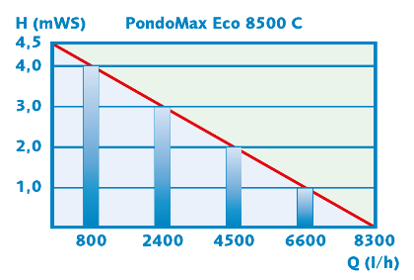

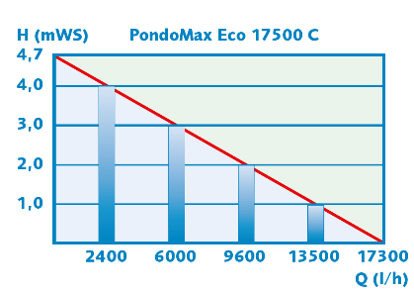

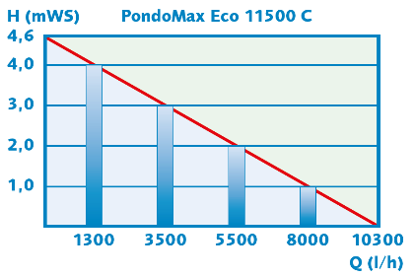

PondoMax Eco 8500 C - 17500 C Pump Performance Data
