  • FiltoClear SET 60000 Premium OC

  • QTY

    £2,856.97 inc. VAT

    £2,380.81 exc. VAT

  • Pay in 3 interest free payments of £952.32

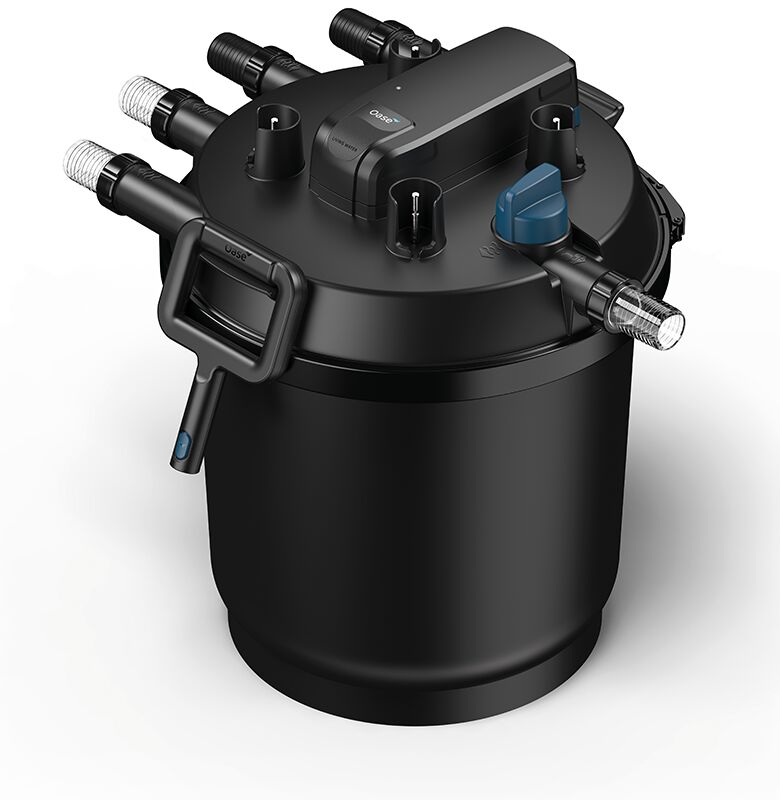

  • Ideal for larger ponds and water features, the new OASE FiltoClear SET 60000 pressurised pond filter offers superb levels of mechanical and biological filtration in ponds up to 60,000 Litres.

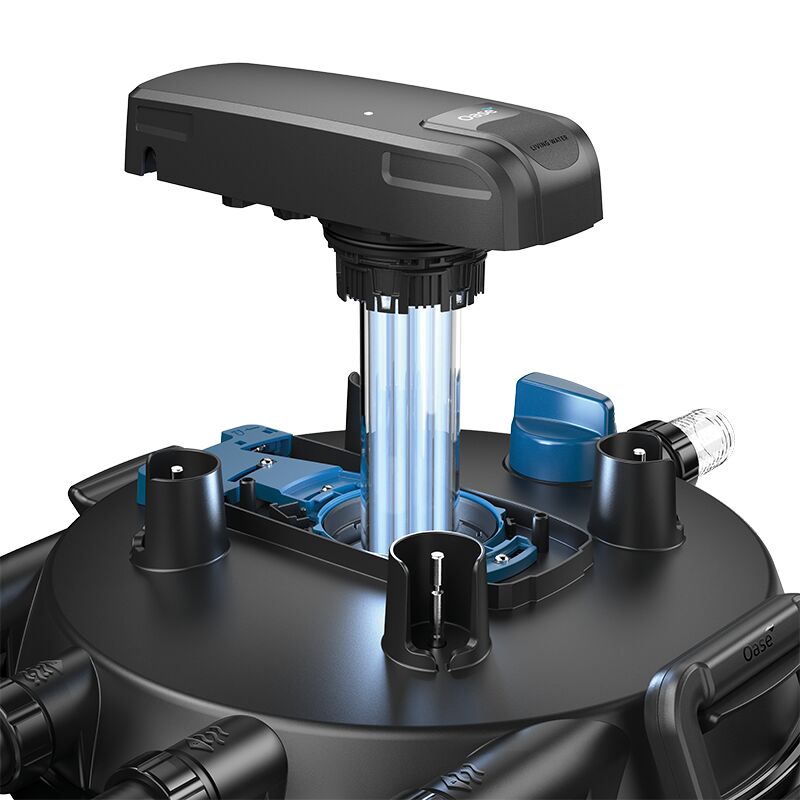

    The FiltoClear SET 60000 features a high output, integrated 84 watt UV Clarifier which can be accessed and maintained whilst the filter is kept running, for absolute convenience and 2 x AquaMax Eco Premium 17000 pumps for maximum water circulation in large ponds.

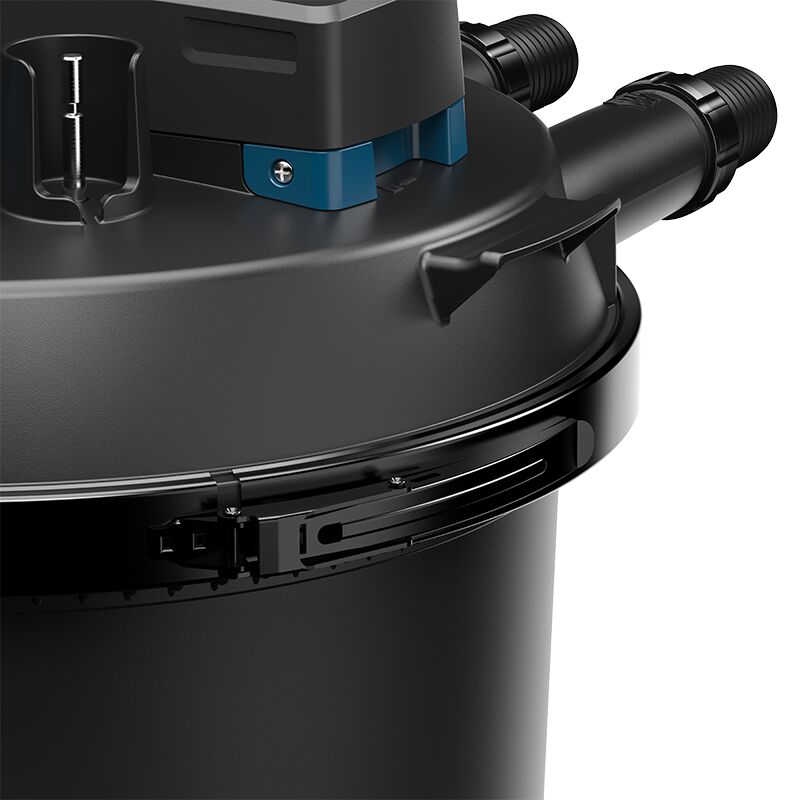

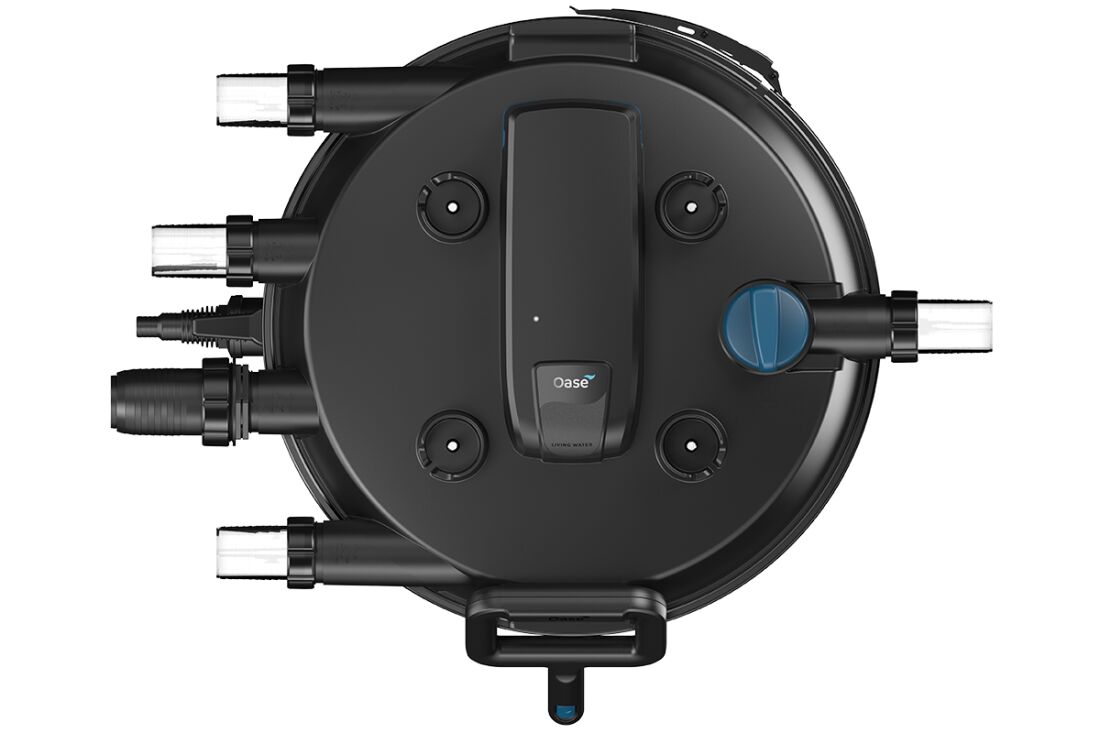

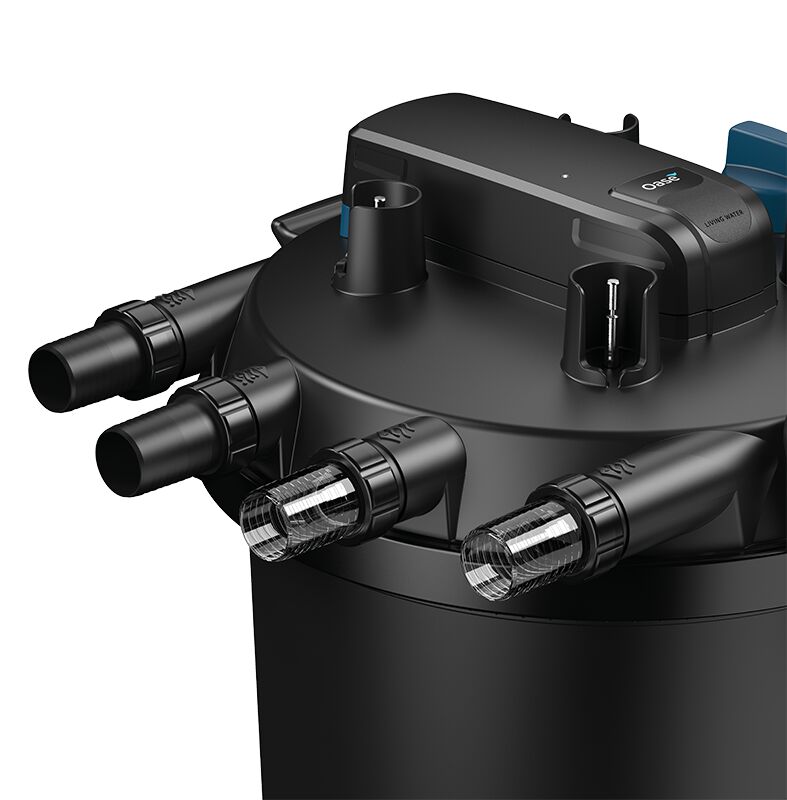

    Capable of handling water flow rates up to 20,000 litres/hour, the FiltoClear 60000 features two 2” inlets and two 2” outlets for maximised performance with minimal flow losses.  The sealed filter container can accept pressures up to 1.5 bar (15m head) meaning higher pressure pumps can be used, with the capability to elevate the processed water outlet hose above the filter.  The FiltoClear SET 60000 is therefore ideal for supplying cleansed water to larger waterfalls and decorative streams.

    This innovative pressurised pond filter is also very simple to clean, without the need to access or touch the dirty filter foams directly.  The patented cleaning mechanism allows the user to compress the banks of filter sponges and dispense the dirty water elsewhere (to plant borders or to drain), all via the supplied cleaning handle.

    The FiltoClear SET 60000 filter can also be buried in soil up to the head of the filter, making this simple and convenient to disguise.

    • Ornamental/swim ponds up to 60,000 Litres (13,300 Gals)
    • Fish Ponds up to 30,000 Litres (6,600 Gals)
    • Koi Ponds up to 15,000 Litres (3,300 Gals)
    • Recommended Hose Size:  2” Internal Diameter Flexible Hose
    Find out more

Description

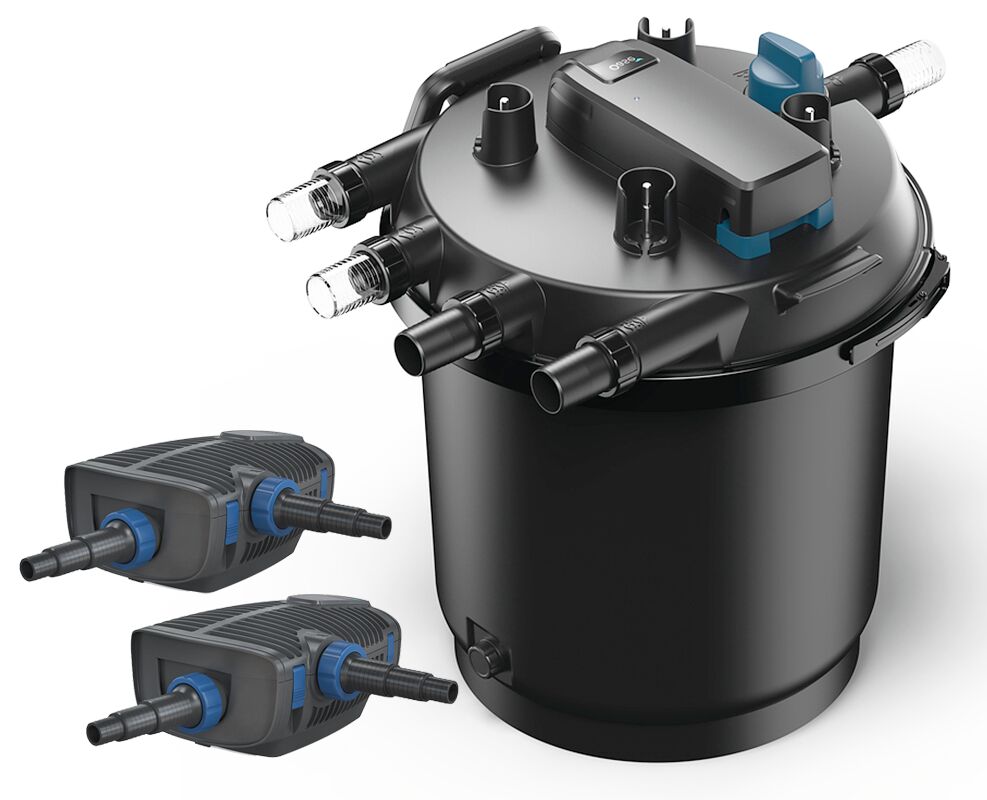

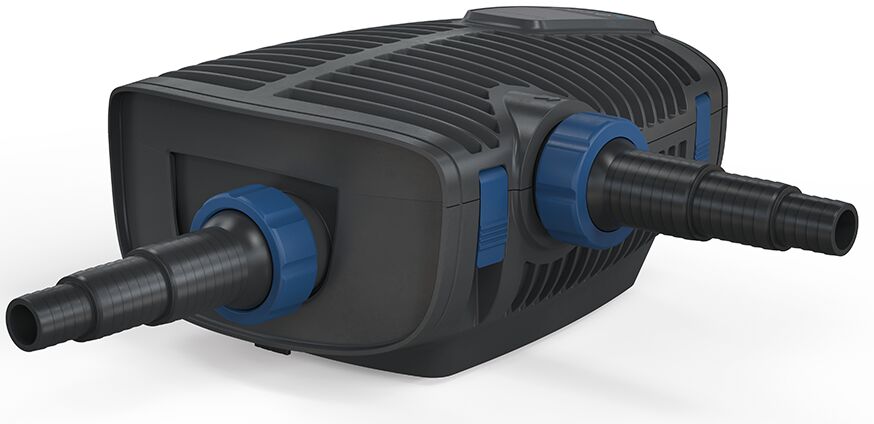

The OASE FiltoClear SET 60000 is designed to provide superb levels of mechanical and biological filtration in ponds up to 60,000 litres in volume.  Featuring two inlets and two outlets to enhance circulation and debris collection, the FiltoClear 60000 is highly configurable and can be adapted to any pond installation.  The FiltoClear SET 60000 is supplied with 2 x AquaMax Eco Premium 17000 filter pumps that will connect to the two filter inlets, to increase circulation and offer two points of suction on the pond floor.

FiltoClear 6-90000 Installation Graphic

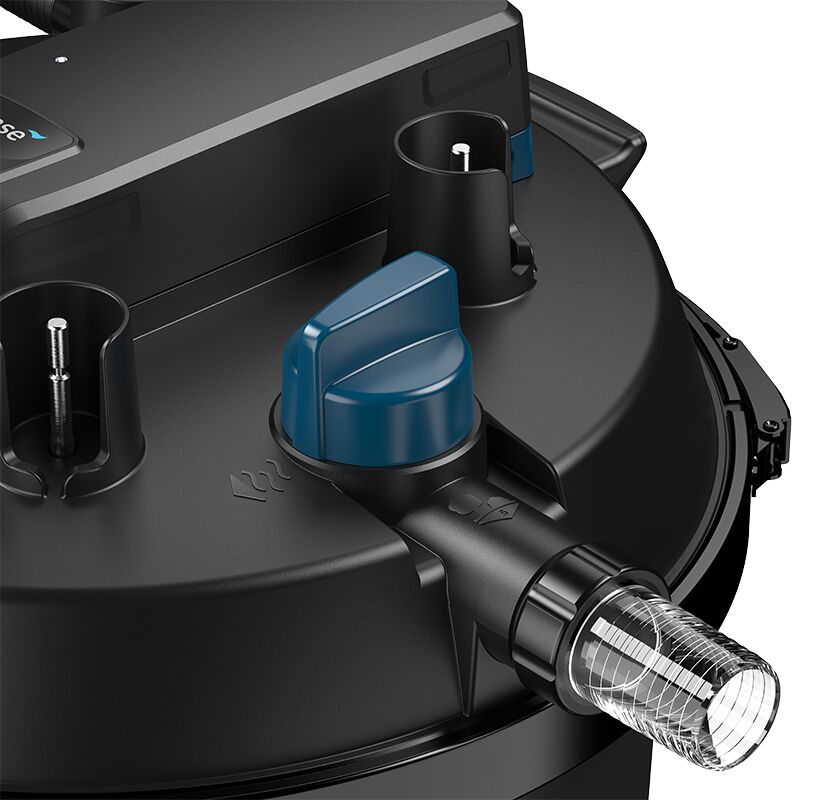

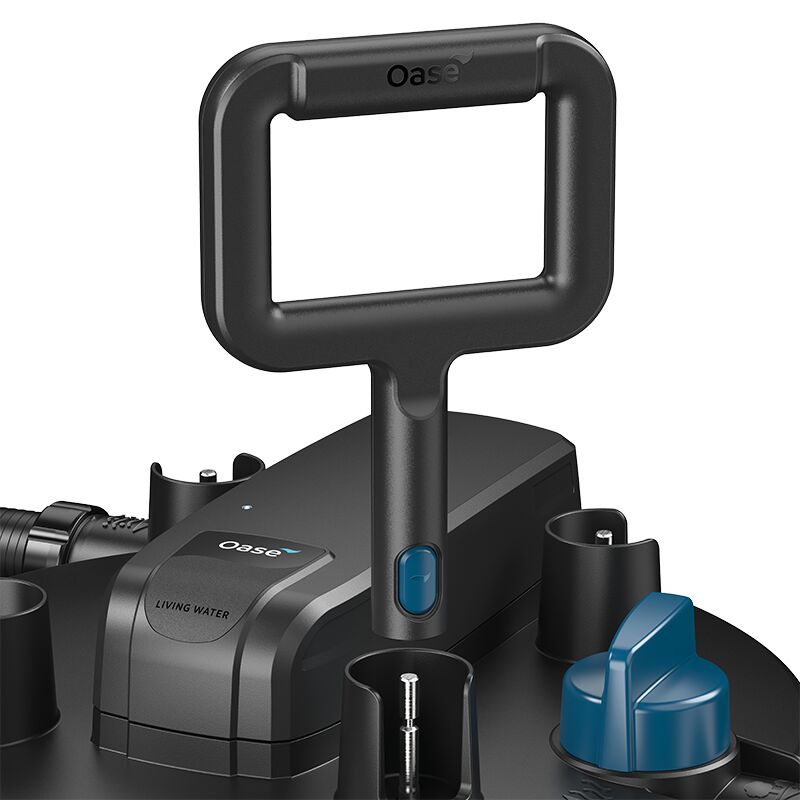

The FiltoClear 60000 has been engineered to be easy to clean and maintain due to the internally stacked foam filter quadrants inside the bottom drum which make for simple and convenient cleaning.  Attach the included cleaning handle to each of the 4 steel cleaning rods and raise the handle to compress the foams.  The dirty water can then be evacuated out of the seperate dirty water outlet, at the simple twist of the bypass knob.

FiltoClear 6-90000 Cleaning (1)FiltoClear 6-90000 Cleaning (2)FiltoClear 6-90000 Cleaning (3)

Product video

Additional Information

Technical Info

Technical Info

Filtoclear model
Dimensions in mm (L x W x H)
670 x 600 x 760
670 x 600 x 960
Weight (kg)27.0032.00
Hose connections (Inlet / Outlet and Sludge Outlet - fitting supplied)
2" (50mm)
Max Pump Capacity (litres/hour)
20000
23000
Maximum operating pressure
15 metres (1.5 bar)
Pollutant Indicator
Yes
Integral Ultraviolet Clarifier (UVC) 230 volts
84 watts
120 watts
Voltage
230 V / 50 Hz
UVC cable length
5 metres
Qty of super fine 45PPI filter foams (green)44
Qty of coarse 10PPI filter foams (blue)
4
4
Qty of medium 20PPI filter foams (purple)48
Qty of fine 30PPI filter foams (red)
4
8
Max. volume for ponds without fish
60000 L
90000 L
Max. volume for ponds with goldfish
30000 L
45000 L
Max. volume for ponds with Koi Carp
15000 L
22500 L
Supplied Pumps2 x AquaMax Eco Premium 170002 x AquaMax Eco Premium 21000
GuaranteeFiltoClear standard 2 year, which can be increased, free of charge, to 3 years by completion and return of the corresponding request card. AquaMax Eco pumps standard 3 year, which can be increased, free of charge, to 5 years.
